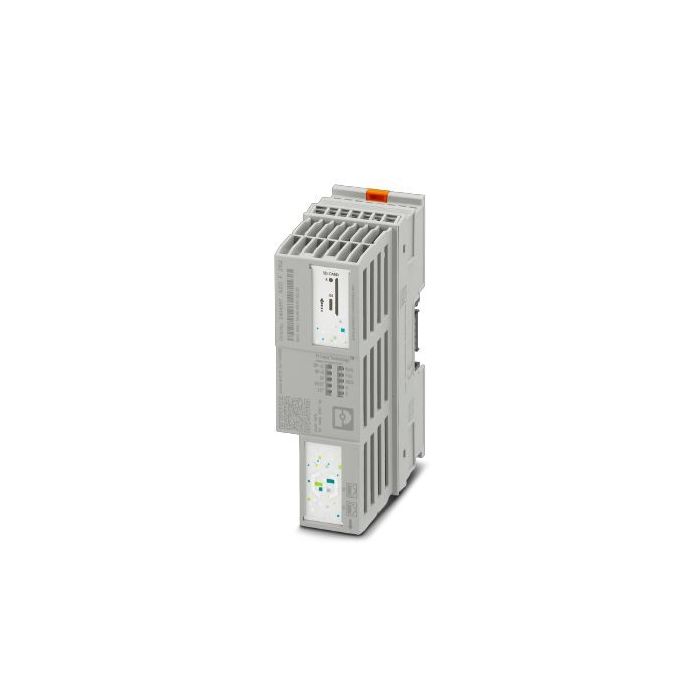

Sistema de Control PLC NEXT para el sistema de E/S Axioline. PHOENIX CONTACT
/ para comprar
Ref. Fabricante: 2404267
Familia.
PLC Next
Controlador avanzado de la familia PLC NEXT para el sistema de E/S Axioline con 2 *RJ45 puertos Ethernet y procesador ARM Cortex A9 2*800 MHz.Sistema operativo Linux. OPC UA y Controlador Profinet nativo. Cuenta con 512 Mb (SDRAM) de RAM 8 Mbyte de Memoria de programa y 16 Mbyte de memoria de datos. SoportaIEC 61131-3, C++, C# , MATLAB, Java como lenguajes de programación.Rango de temperatura ="-25..+60ºC"ºC. Como herramienta de programación GRATUITA se necesita el softwarePLC Next Engineer
Sectores:
Marca.
PHOENIX CONTACT
Categorías:
Automatización Industrial, Sistemas de control, PLCnext
Plataforma de control Linux
Tiempo real estricto para diferentes lenguajes (IEC 61131,C++,C#,MATLAB..)
OPC UA
Controlador Profinet integrado
Herramienta de programación GRATUITA
| Interface Ethernet | 2 *RJ45 |
|---|---|
| Interface de servicio | Micro USB |
| Procesador | ARM Cortex A9 2*800 MHz |
| Herramienta de Programacion | PLC Next Engineer |
| Sistema Operativo | Linux |
| RAM | 512 Mb (SDRAM) |
| Memoria de programa | 8 Mbyte |
| Memoria de datos | 16 Mbyte |
| Memoria de datos remanente | 48 kbyte (NVRAM) |
| Numero de tareas | 32 (16 por nucleo) |
| Reloj tiempo real | Si |
| Tension VDC | 24 |
| Dimensiones mm (AxAxF) | 126,93x45x75 |
| Grado de proteccion IP | IP20 |
| Rango Tª (ºC) | -25..+60ºC |
| OPC UA | Si |
| Controlador PROFINET | SI (64 participantes) |
| Clase PROFINET | Si |
| Visualizacion | HTML5,Java |
| Lenguajes de programacion | IEC 61131-3, C++, C# , MATLAB, Java |
| UL | SI |
| Aprobaciones Navales | Si |
| ATEX | Si |
| Esclavos AXIOBUS | 630 |
